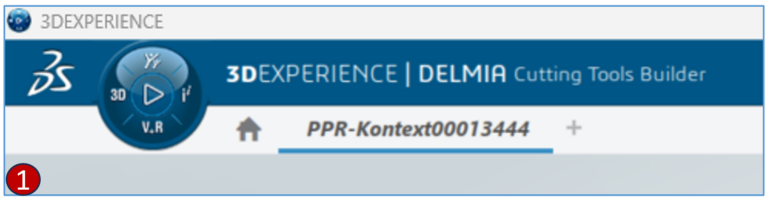

1-Open 3DEXPERIECE|DELMIA Cutting Tool Builder

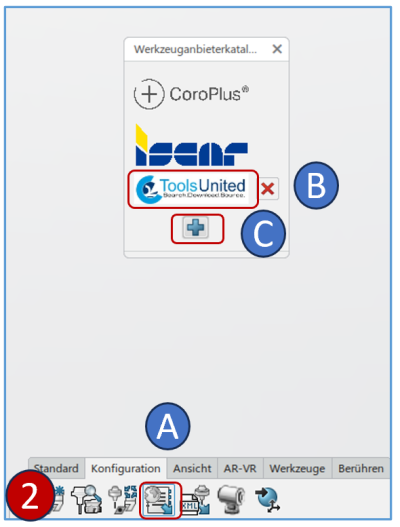

2- 3DEXPERIENCE Window
A- In bottom, Click on Catalogues web search
B- Click on „ToolsUnited“ icon
C- Click on „+“
3- Tool supplier Catalogues window opens

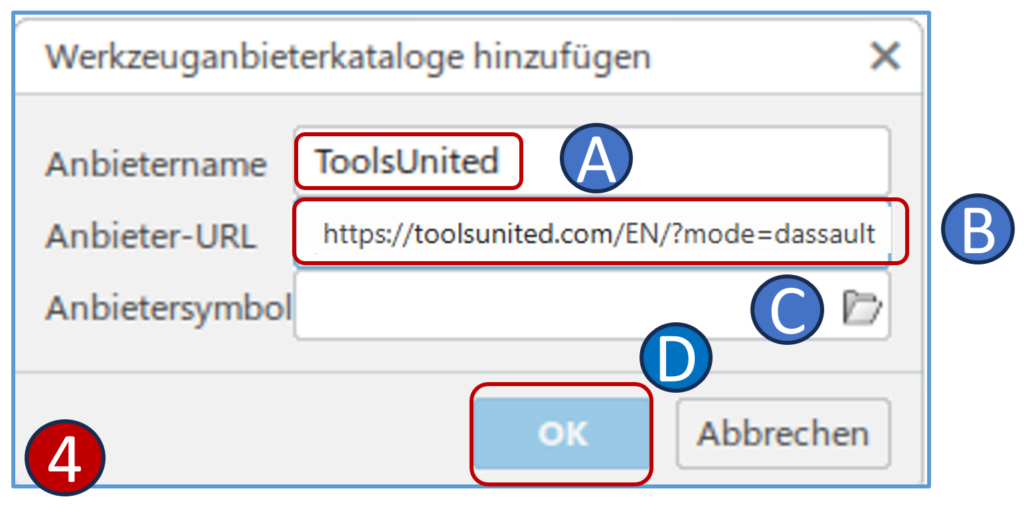

4- Fill the required information –
A- Company Name: ToolsUnited
B- Company –URL: https://toolsunited.com?mode=dassault
C- Company Symbol
D- Click on „OK“

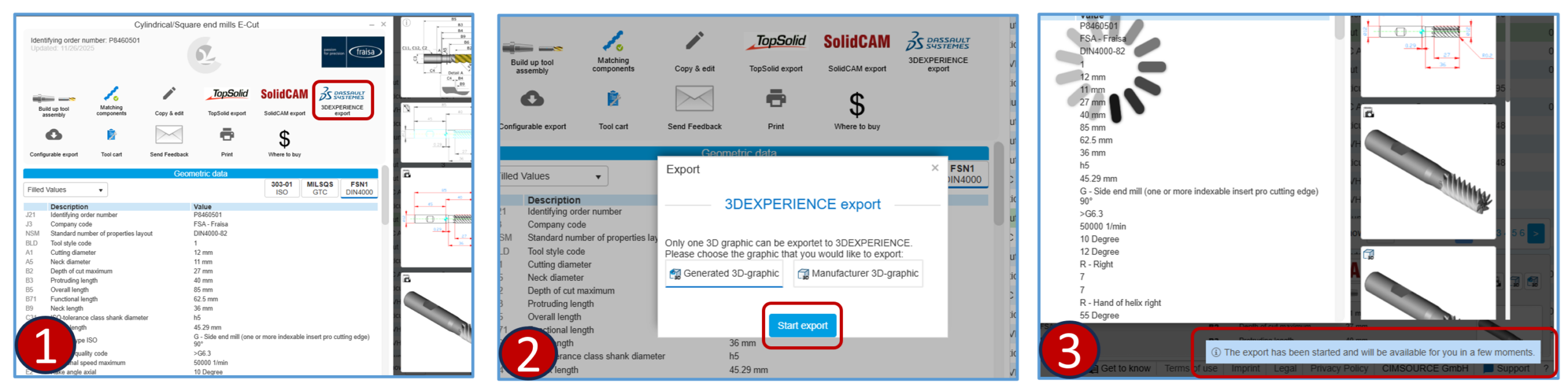

1- After selecting Component/Assembly click on „DASSAULT SYSTEMS 3DEXPERIENCE“ Icon
2- Click on Start Export
3- Export process start message will display

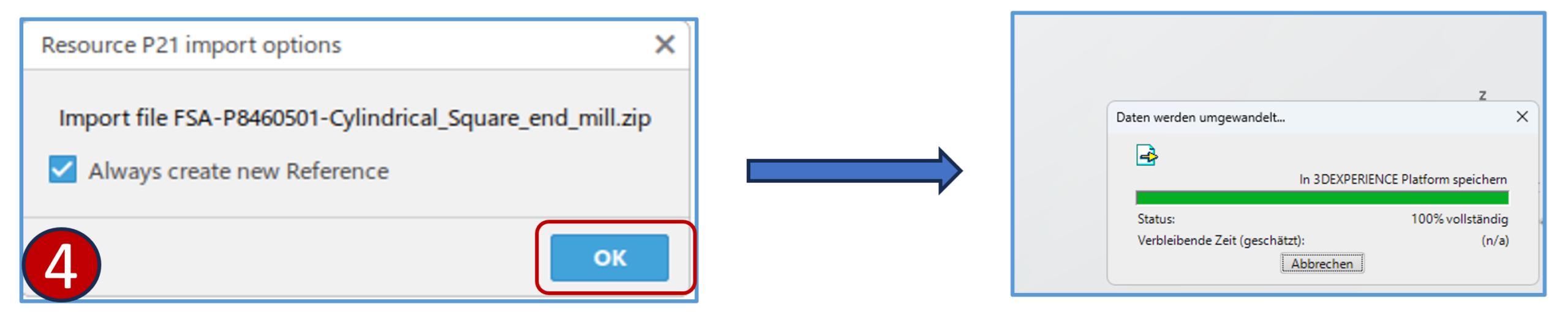

4- Resource P21 import option-Click Ok

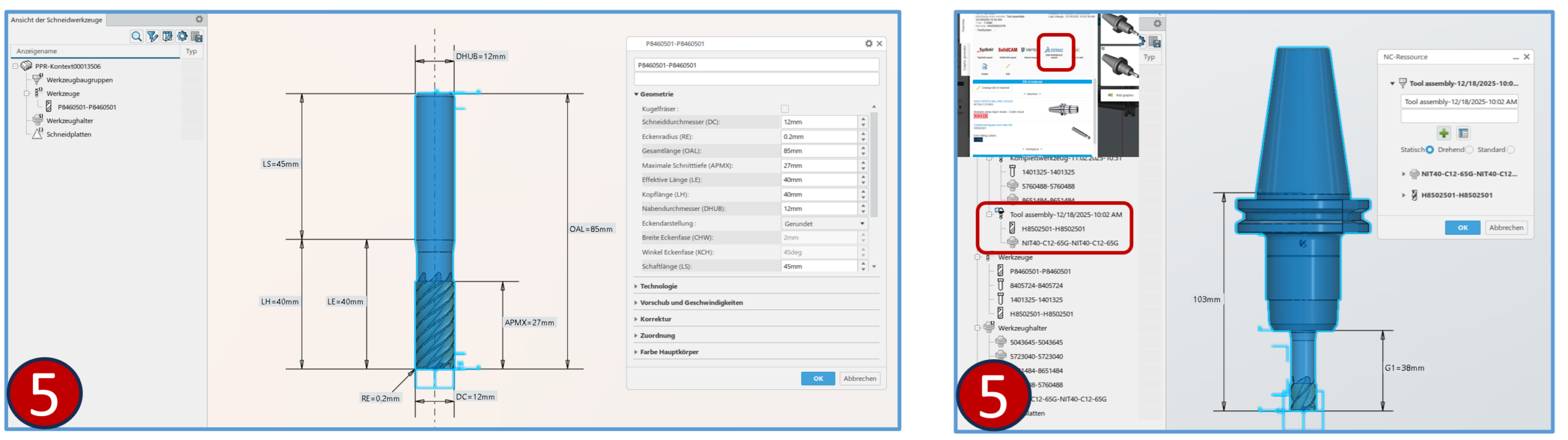

5- 3DEXPERIENCE window will open with selected Component/Assembly
